What is 3D Scanning?

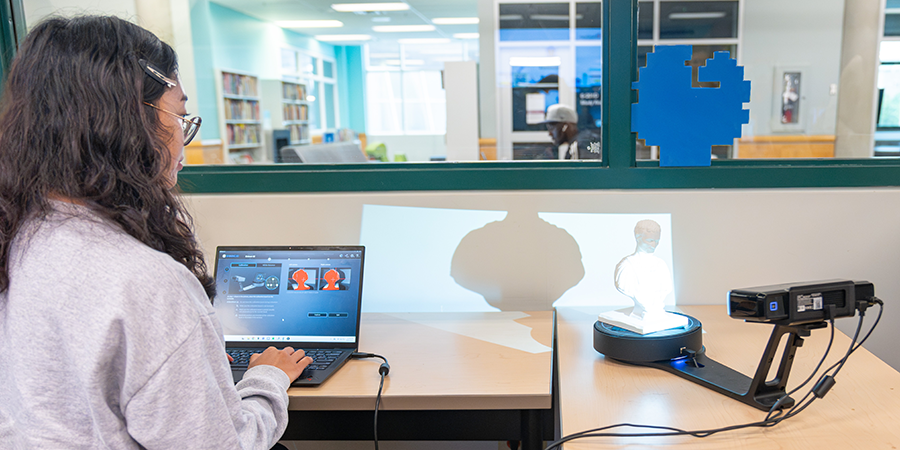

3D scanning captures the shape of a real-world object and turns it into a digital 3D model. It works by using light, lasers, or cameras to scan the object's surface and record its size, shape, and details. Our scanner model is an Einscan SE (rotating scanning platform).
You could 3D print a double, modify it, or personalize it! Some examples of previous uses include capturing a coyote skeleton for educational purposes, capturing objects with emotional value to create replicas, creating an exact missing or broken part or creating a 3D print based on a clay model. See the Smithsonian’s 3D Digitization website for some cool examples of 3D scanning!

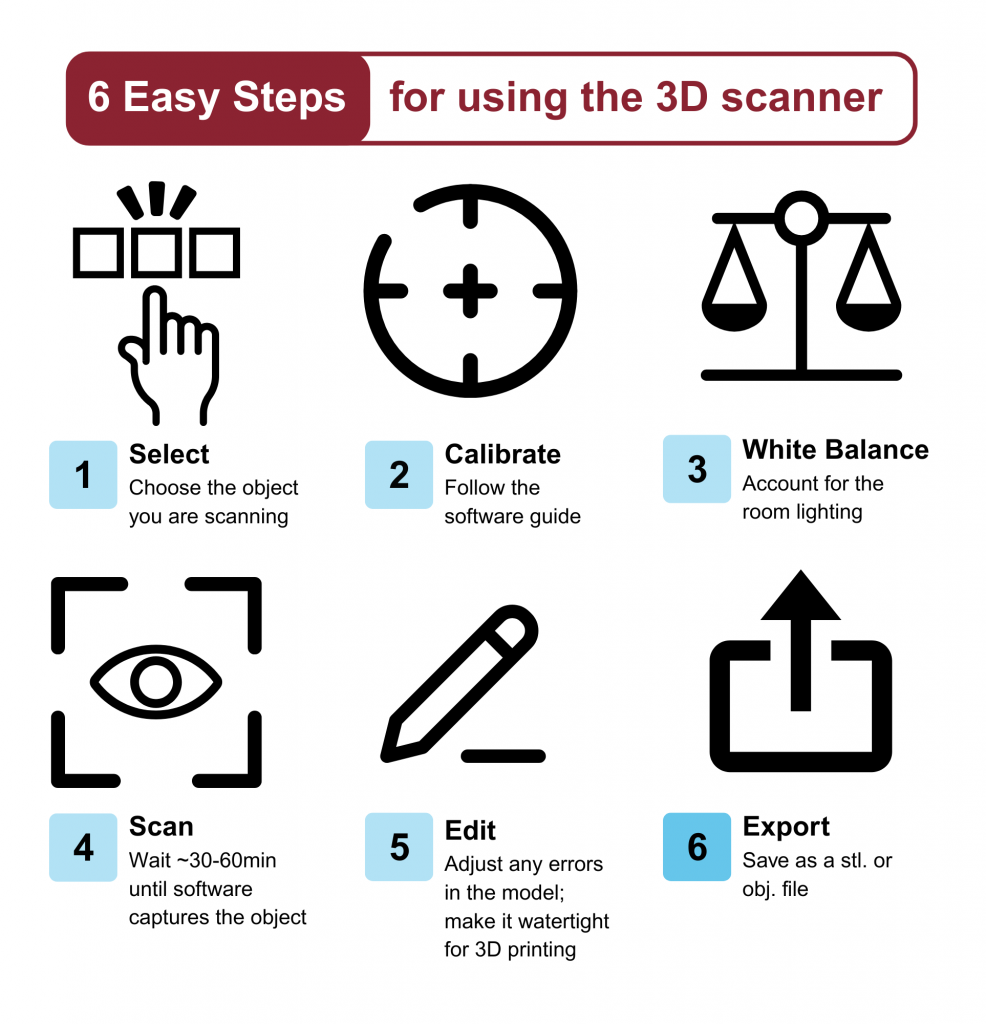

How To
Specifications
Size Limitations
The object needs to be between 1.2" square x 38" squared to fit on the rotating bed. Fix scan can be larger.
Duration
One scan takes approximately 30-60min. If you need additional scans to capture other angles of the object it will take more time. You can leave a scan running and return if you wish.
Choosing an Object to Scan
The following objects are not recommended to scan.
- moving or vibrating objects
- soft material objects
- lattice structures with many small deep holes
Dark or reflective objects are difficult to capture but can be altered using matte spray or cornstarch.
Contact
For any additional questions, advice, or design help, email makerspace@macewan.ca
